BPCL Technical Specifications

Engineering Services & Standards

Comprehensive breakdown of our canopy structural engineering, RVI pylon fabrication, civil driveway pavements, and PESO compliant petroleum installations.

Flagship Manufacturing

1. Structural Steel Canopy Fabrication & Erection

Ganeshcons engineers and manufactures heavy structural steel canopies tailored to Bharat Petroleum brand specifications, engineered to withstand extreme wind pressure, monsoon precipitation, and seismic loads.

Technical Specifications

Structural Steel GradeIS:2062 Grade E250 / Fe 410 WA

Wind Velocity RatingTested up to 160 km/h (Basic Wind Speed Zone IV)

Roofing Material0.50mm BMT Galvalume / Color Coated Trapezoidal Sheets

Fascia Cladding4mm PVDF coated Fire-Retardant Aluminum Composite Panels (ACP)

Drainage EngineeringInternal box gutters with 150mm PVC down-take rain pipes

Lighting LayoutUnder-canopy IP66 recessed LED luminaires (120-150 Lux level)

Engineering Advantages

In-house fabrication at Panki Works eliminates third-party quality variance
Automated CNC profile cutting for high-precision bolt-joint assemblies
Two-coat zinc chromate primer followed by epoxy high-gloss finish

1. Structural Steel Canopy Fabrication & Erection

BPCL Brand Identity

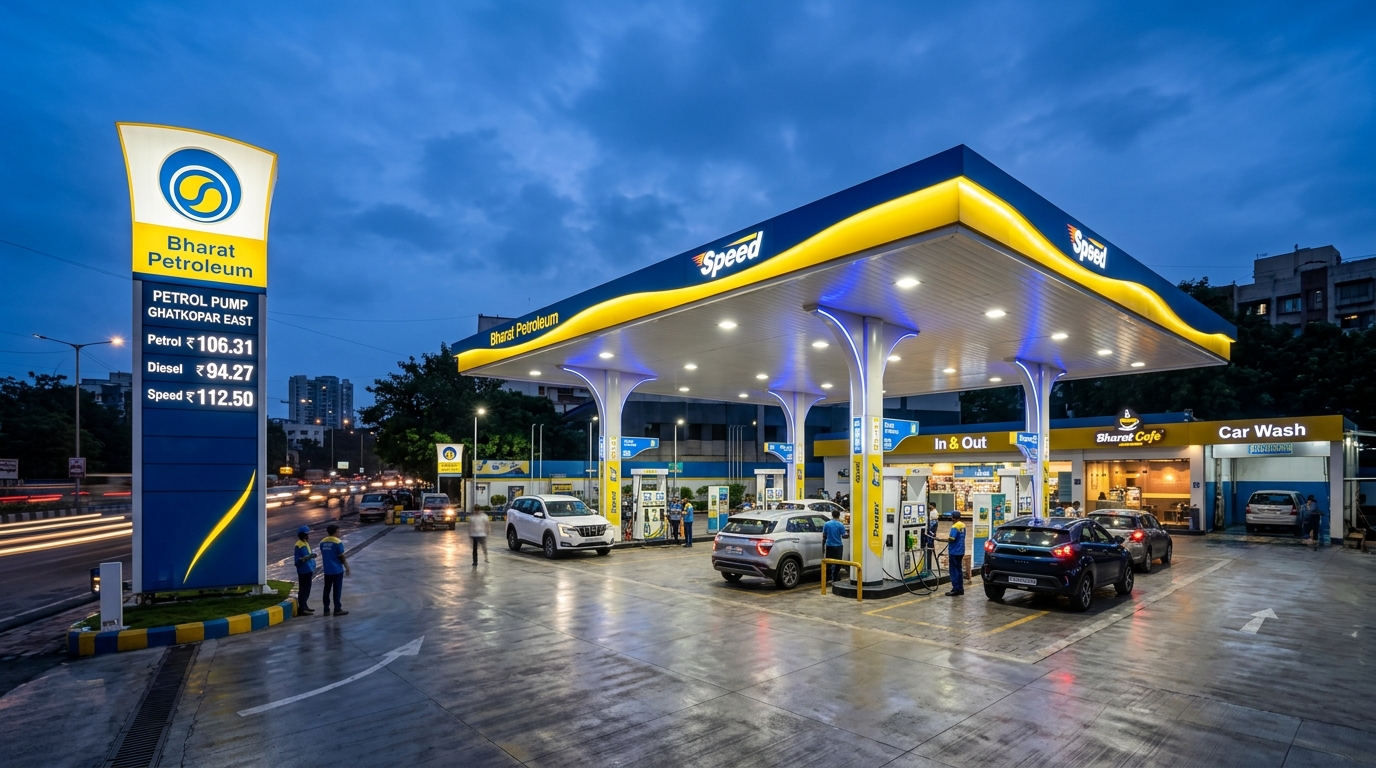

2. Retail Visual Identity (RVI) & Monolith Totems

We fabricate and install high-visibility BPCL brand identity elements conforming to the latest Bharat Petroleum RVI 2.0 standards, ensuring unmatched highway presence and consumer recall.

Technical Specifications

Pylon Monolith Height6.5 Meter / 8.5 Meter Highway Totem

Rate Display TechnologyUltra-bright IP67 7-Segment LED Digits with Wireless Remote

Fascia Illuminated SignThermoformed Acrylic 3D BPCL Logo & Lettering

Spreader CladdingYellow & Royal Blue wave bands with 3M retroreflective vinyl

Pillar BoxingCustom CNC curved column wraps with integrated hose holders

Engineering Advantages

Fully compliant with BPCL Corporate Identity Manual
Daylight-visible high-contrast LED fuel price displays
Weather-sealed internal driver boxes to prevent moisture ingress

2. Retail Visual Identity (RVI) & Monolith Totems

Heavy Traffic Driveways

3. Turnkey Civil Works & Driveway Pavements

Heavy commercial vehicle traffic requires flawless pavement engineering. We construct Vacuum Dewatered Flooring (VDF / Trimix) concrete driveways and heavy-duty interlocked paver blocks.

Technical Specifications

Concrete Pavement GradeM30 / M35 Ready Mix Concrete with groove cutting

Paver Block Specs80mm / 100mm heavy duty M50 grade zig-zag pavers

Sales BuildingRCC frame structure for Manager Office, Cash Room & In&Out store

Stormwater NetworkOil-water separator chambers with peripheral RCC storm drains

Engineering Advantages

Engineered sub-grade compaction to eliminate driveway sinkage
Anti-skid driveway finishing for maximum safety during rainfall
Complete customer amenities: modern rest rooms and drinking water booths

3. Turnkey Civil Works & Driveway Pavements

Petroleum Safety Rule Compliance

4. Underground Petroleum Tanks & Piping (PESO Licensed)

Zero-leakage petroleum storage is the heart of a fuel station. We manufacture and install PESO approved horizontal cylindrical storage tanks and secondary containment flexible pipelines.

Technical Specifications

Tank Capacity Options20 KL, 40 KL, 60 KL, 70 KL Compartmented

Manufacturing StandardIS:2825 / PESO Class A & B Petroleum storage rules

Piping TechnologyElectrofusion welded secondary containment HDPE double-wall pipes

Safety AccessoriesPressure vacuum valves, shear valves, overfill prevention valves

Engineering Advantages

Full factory hydro-testing with certified pressure gauge graphs
Heavy anti-buoyancy RCC hold-down foundation blocks for waterlogged zones
PESO licensed engineers handling drawings, test certificates & final license

4. Underground Petroleum Tanks & Piping (PESO Licensed)

Need Custom Structural Drawings for Your Station?

Send us your BPCL site survey plan and our CAD engineering team will provide layout drawings and structural estimates within 48 hours.
